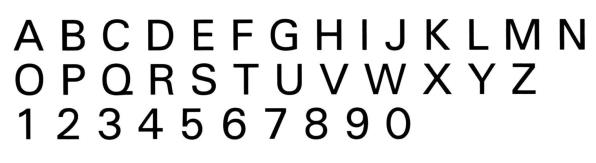

The first three lines below show the style of letters and numbers that you must use for all drawings and assignments. This style of lettering is called single-stroke Gothic. The upper case letters are used in Engineering Drawing. (See Figure 1.5)

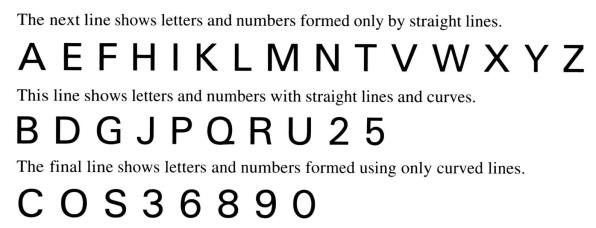

Figure 1.5

Vertical capital letters
